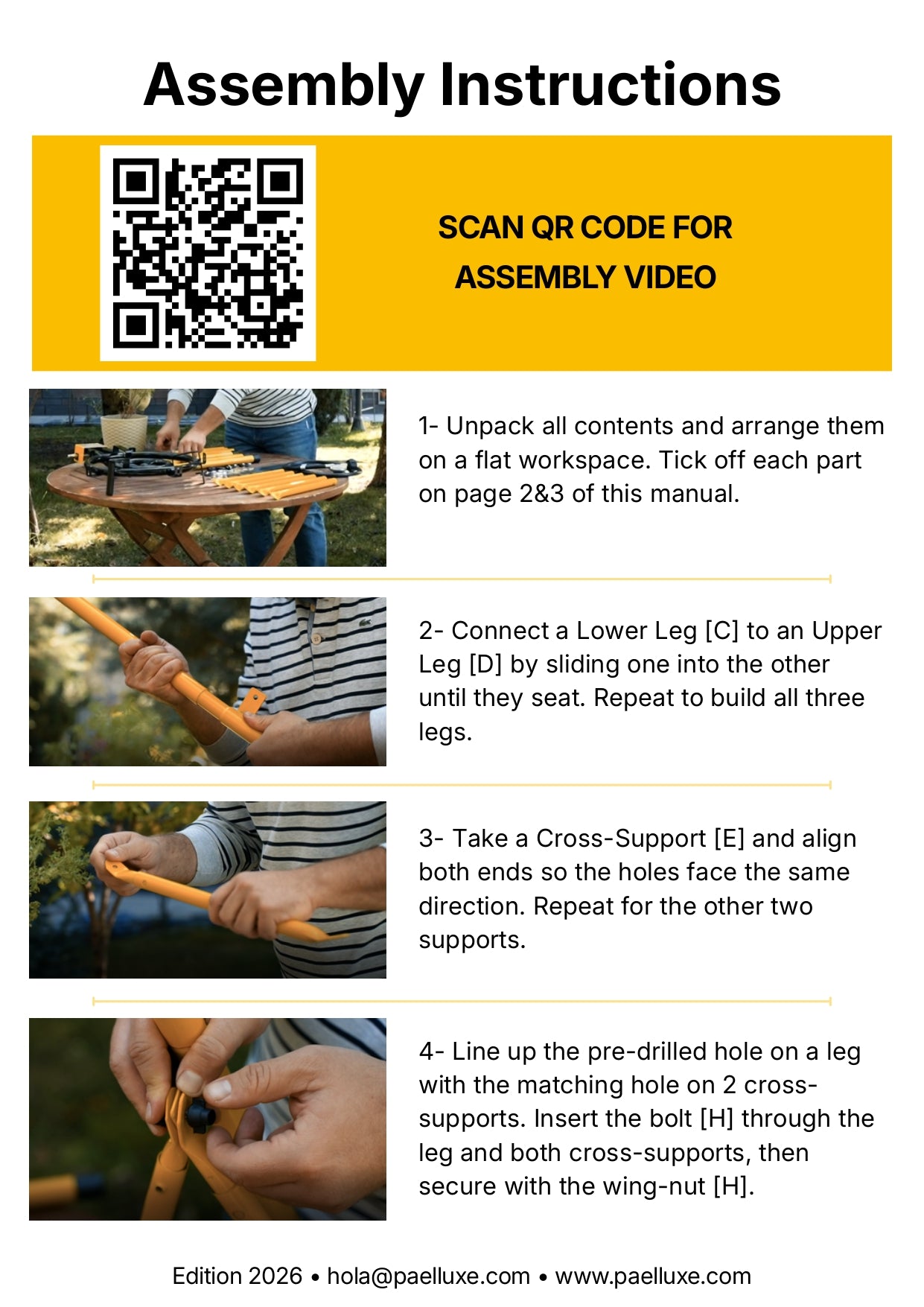

Assembly Instructions

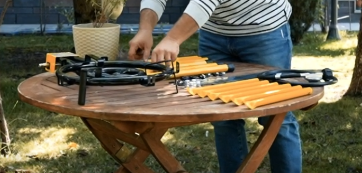

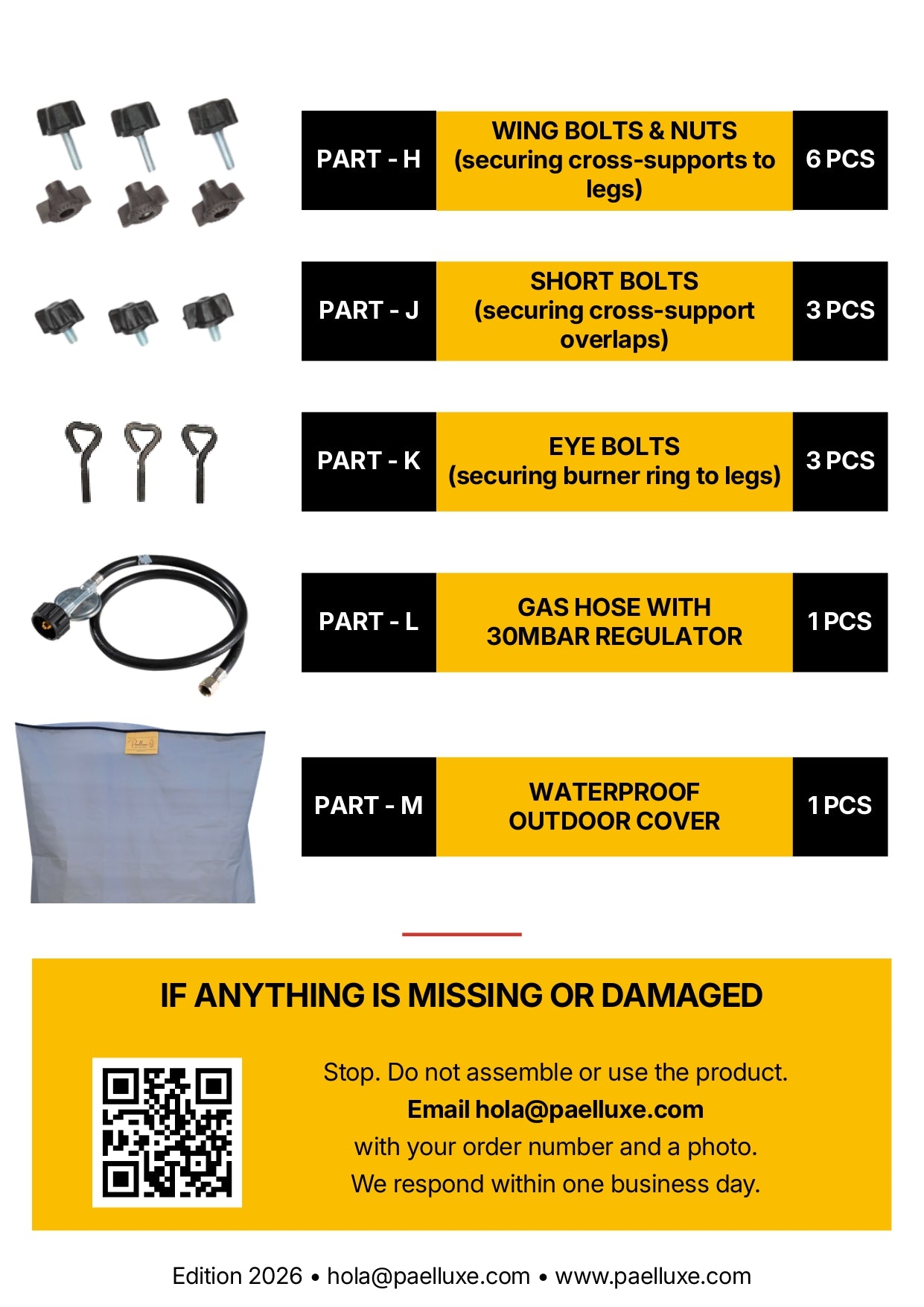

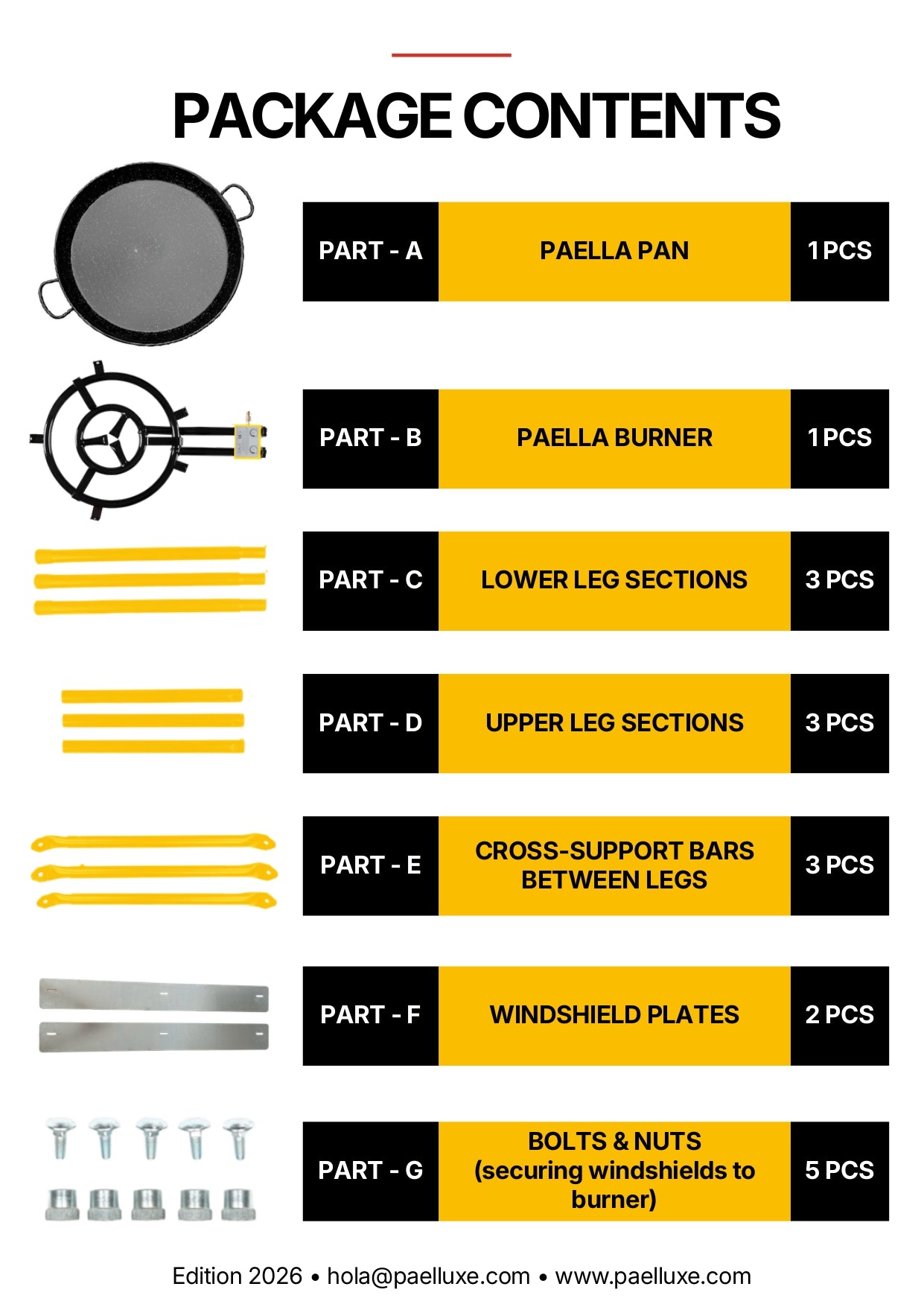

step-one 1 - Unpack all the contents of the package and arrange the parts on your workspace. Ensure you have all necessary components as per the product's parts list

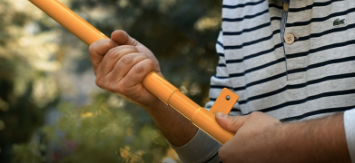

step-2 2- Take the two separate leg sections. Align the ends of both sections together. Connect them together by sliding one into the other. Repeat for 3 legs.

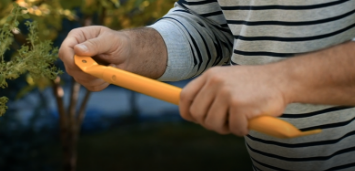

step-3 3- Take the two separate cross supports for legs. Align the ends of both sections together. Connect them together by sliding one into the other. Repeat for 3 cross supports.

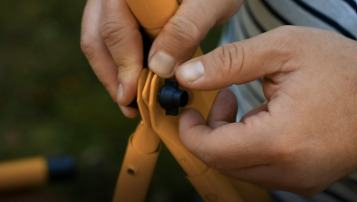

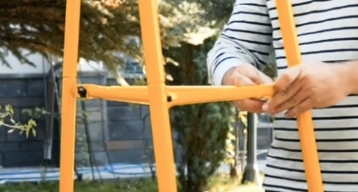

step-4 4 - Line up the pre-drilled hole on the leg with the holes on the 2 cross supports. Insert screw and tighten with nut to secure the cross supports

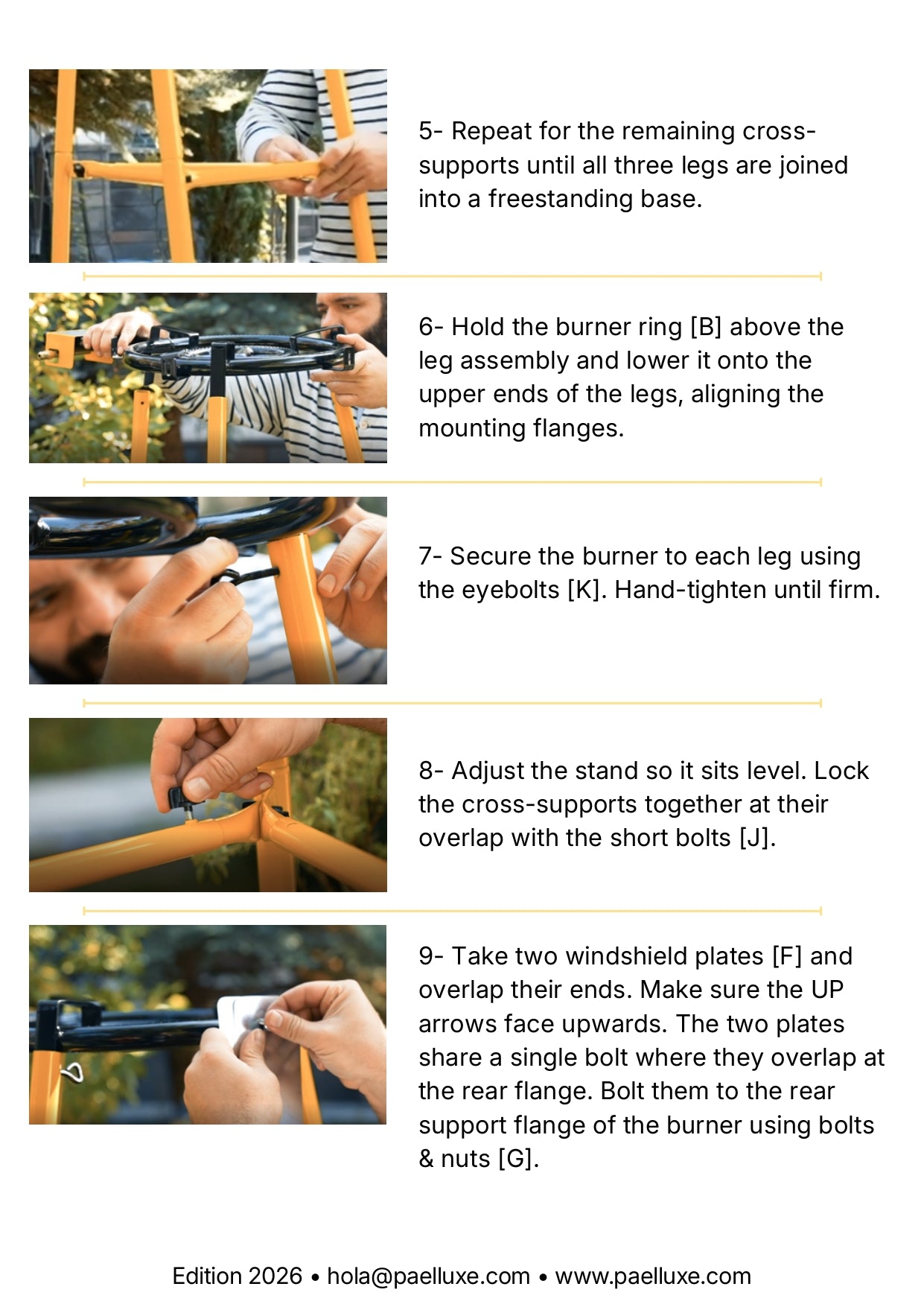

step-5 5 - Repeat previous step for 2nd and 3rd legs. Connect all 3 cross supports to 3 legs to create a freestanding base stand.

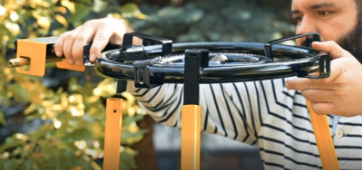

step-6 6 - Hold the gas burner unit above the leg assembly. Align the gas burner's mounting flanges with the upper ends of the legs.

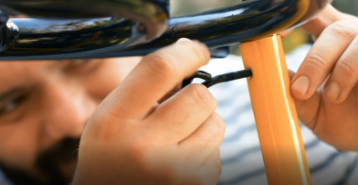

step-7 7 - Secure the burner to the legs using hand screws, tighten them to a firm fit

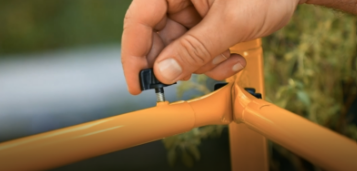

step-8 8 - Adjust the stand to ensure it's level and the legs are properly spaced. Secure the cross supports using short hand screws.

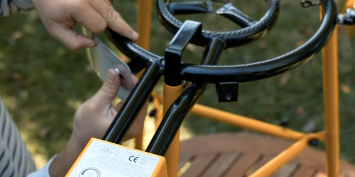

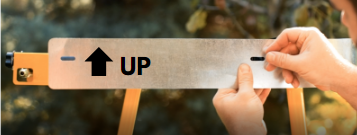

step-9 9 - Overlap the ends of two windshield plates. Arrow marking on windshields needs to look up. Attach to the back side support flange of the burner with the provided bolt and nut. Tighten securely

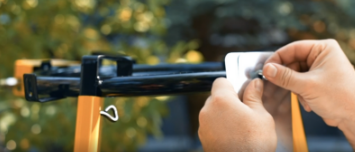

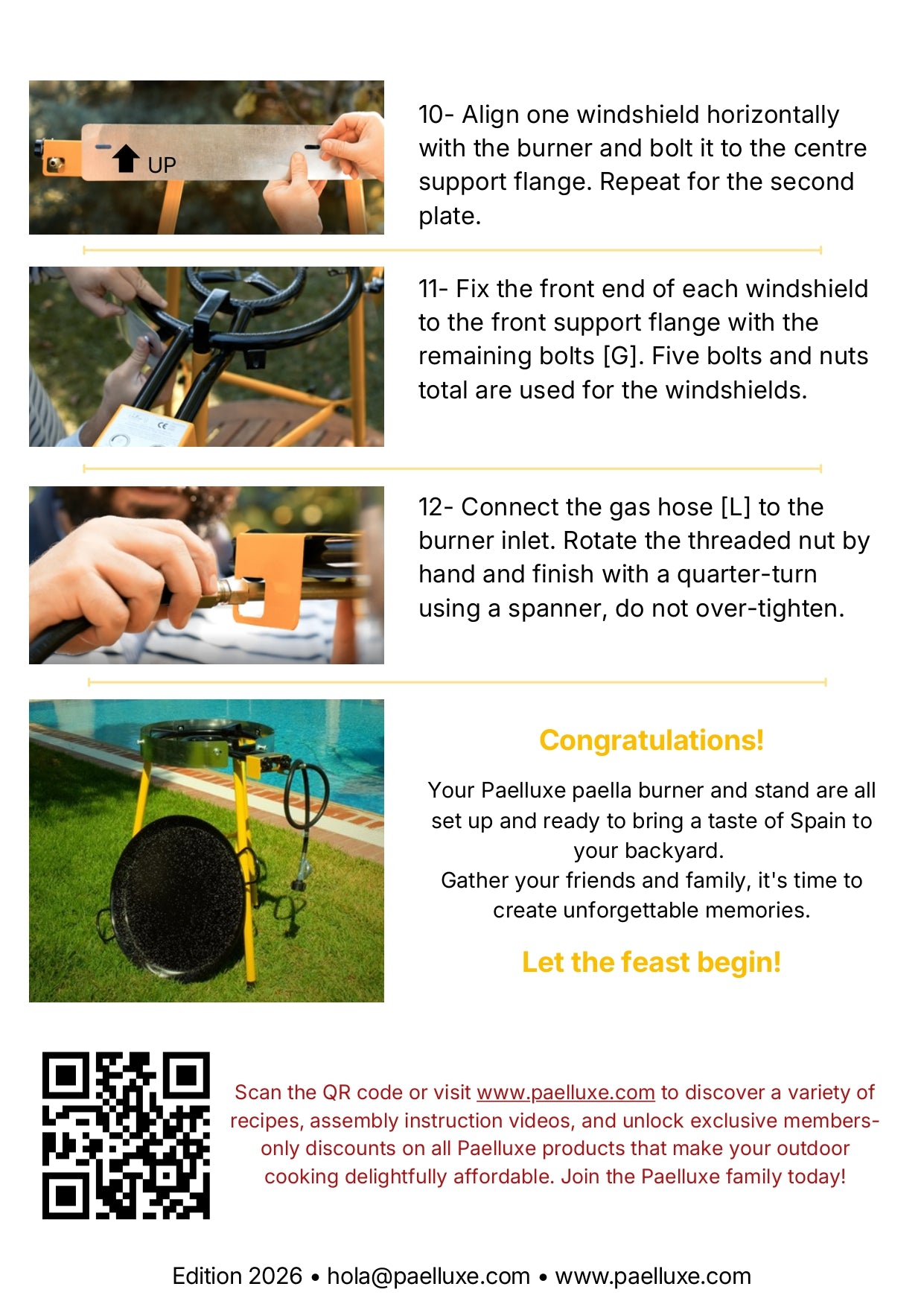

step-10 10 -Align one windshield plate horizontally with the gas burner. Attach it to the center support flange using the provided bolt and nut. Ensure it is secure. Repeat for the 2nd windshield plate.
step-11 11 - Secure the final hole of the windshield to the front side support flange with the supplied bolt and nut. Tighten to fix in place. Repeat for the 2nd windshield plate.

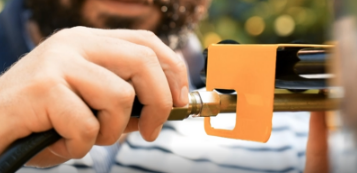

step-12 12 - Connect the gas hose to the burner's inlet. Rotate and tighten the nut to secure it firmly in place.

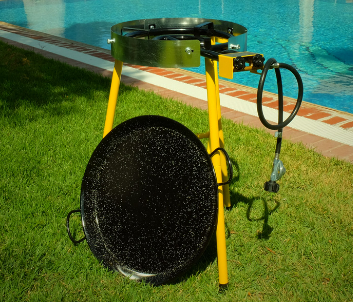

final-step Congratulations!Your Paelluxe paella burner and stand are all set up and ready to bring a taste of Spain to your backyard. Gather your friends and family, it's time to create unforgettable memories.Let the feast begin!
